Active Integrator (CB24390E)

Details
Written by: Newton C. Braga

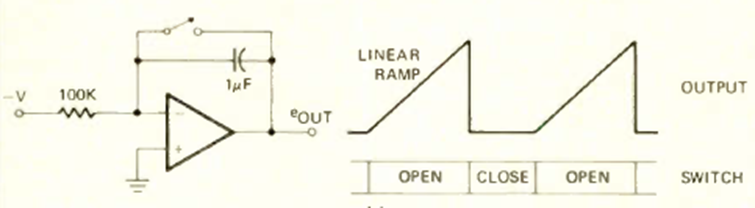

This circuit from July 1975 Radio Electronics uses any operating system with a symmetrical source. The waveform is shown on the side of the diagram.
