Capacitance meter on oscilloscope (CB24788E)

Details
Written by: Newton C. Braga

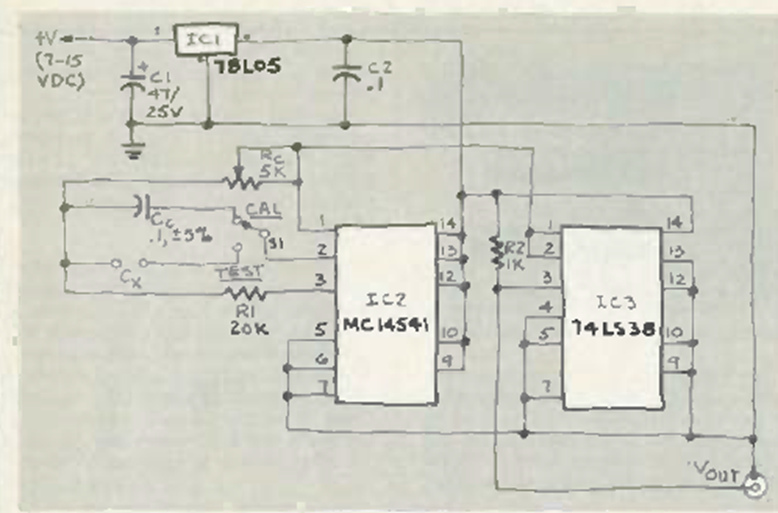

This circuit from March 1984 Radio Electronics is intended to allow the use of an oscilloscope to measure capacitance. The circuit uses common integrated circuits.




| Clique na imagem para ampliar |
