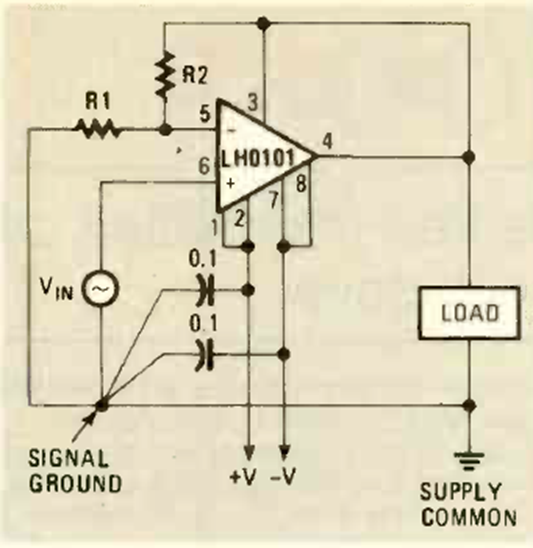

40 W Amplifier (CB24723E)

Using the LM0101 IC this amplifier was found in October 1982 Radio Electronics magazine. The integrated circuit must be mounted on a heatsink.
