Voltage Calibrator (CB24703E)

Details
Written by: Newton C. Braga

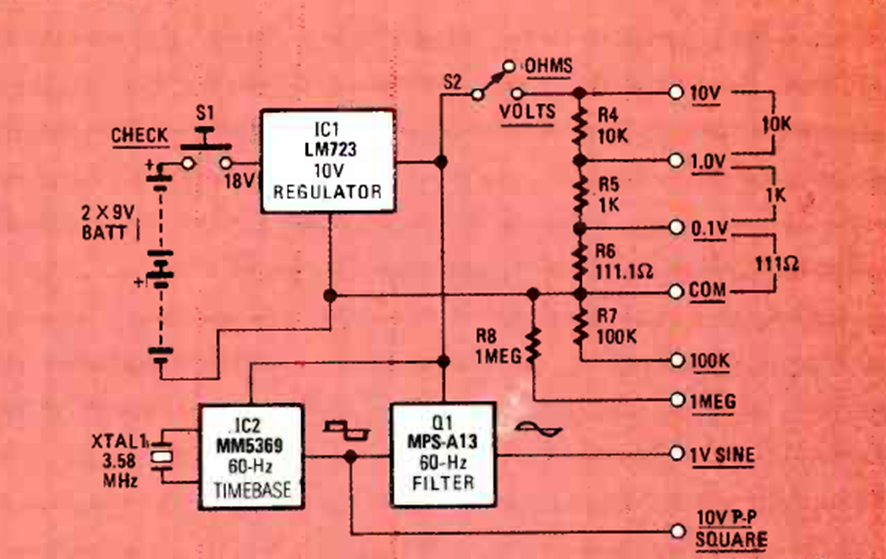

This circuit was found in the June 1982 issue of Radio Electronics magazine. It provides reference voltages for calibrating instruments such as oscilloscopes.
