PROM Programmer (CB24603E)

Details
Written by: Newton C. Braga

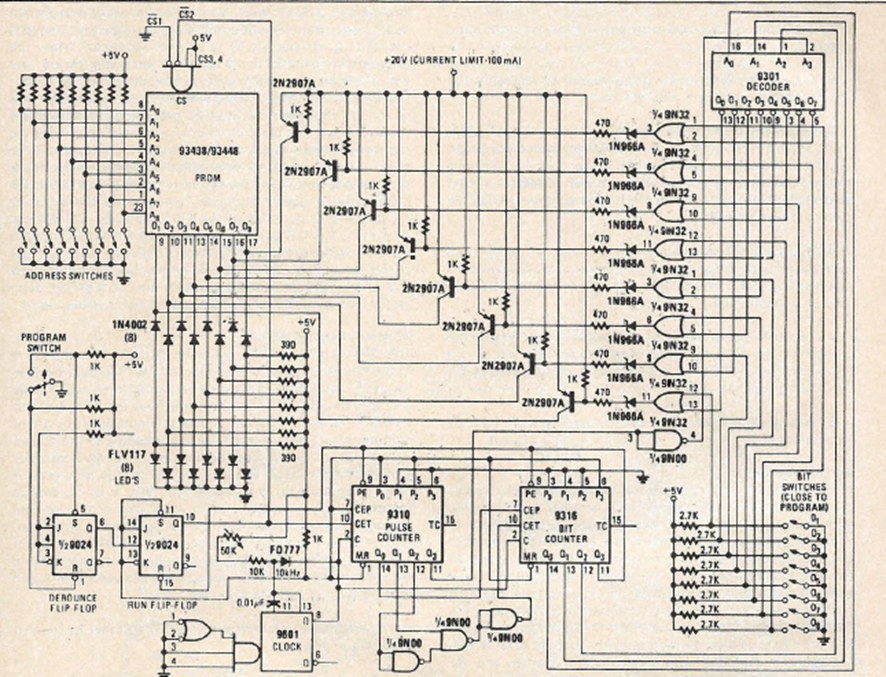

This is a typical circuit of a PROM programmer from the 70s. It appeared in the magazine Radio Electronics in 1979. Note that the programming was done manually byte by byte using switches.
