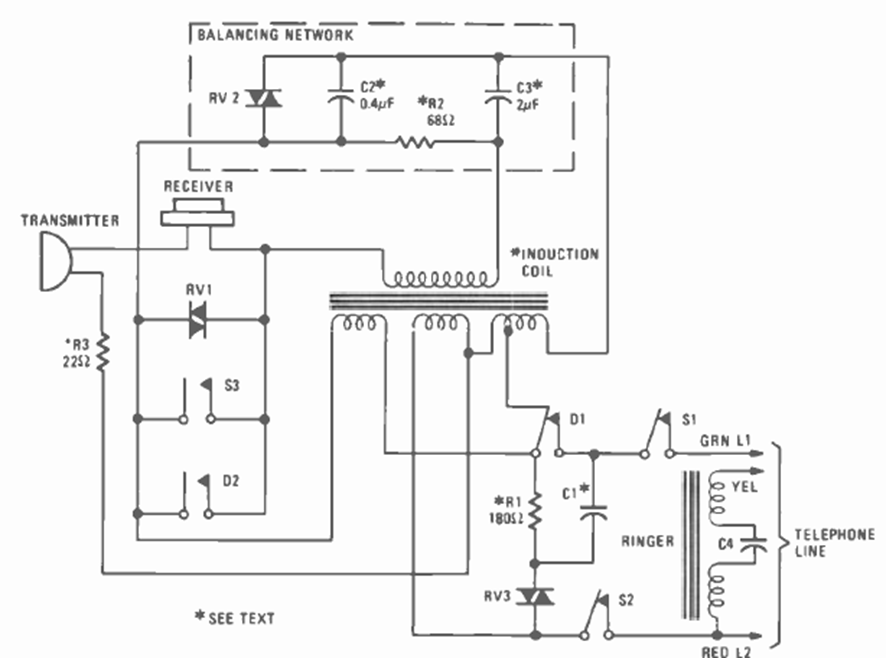

Balanced Telephone Transmitter (CB24500E)

Details
Written by: Newton C. Braga



This circuit is from Radio Electronics from April 1977. The circuit is for analog lines using components from that time.
