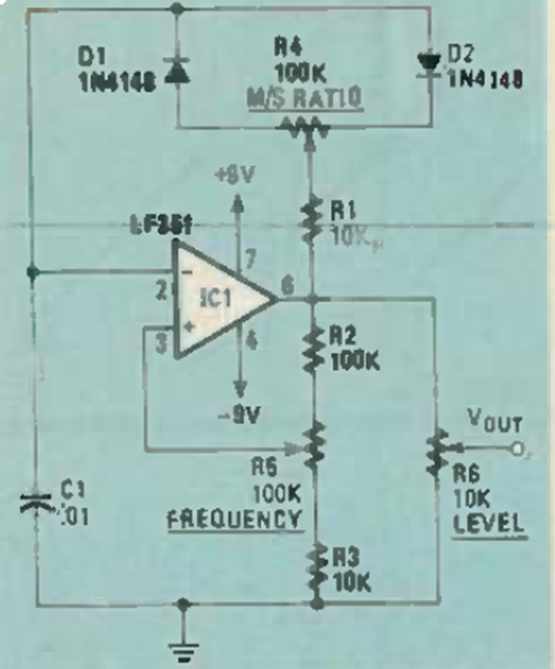

This oscillator was found in the September 1984 issue of Radio Electronics magazine. The frequency is given by C1 and the generated signal can have its level adjusted by a potentiometer. R5 controls the frequency.
Square Generator LF361 (CB24841E)
- Details
- Written by: Newton C. Braga
