Digital Tachometer (CB24543E)

Details
Written by: Newton C. Braga

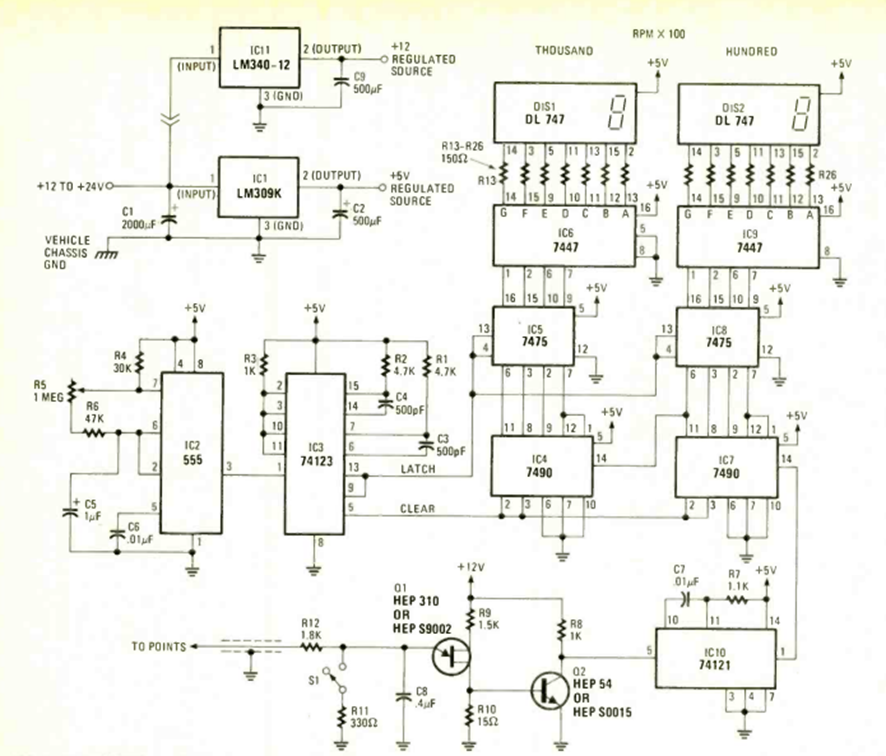

We found this circuit in the April 1978 issue of Radio Electronics magazine. The 2-digit circuit uses common TTL integrated circuits and must be powered by a voltage of 5 V.
