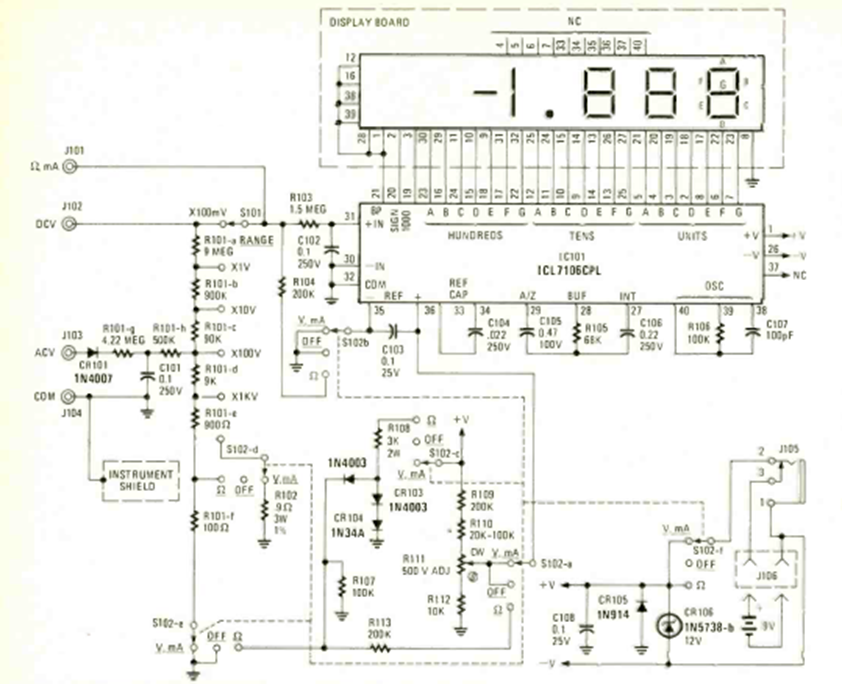

This circuit for a commercial compact digital multimeter was found in the March 1979 issue of Radio Electronics magazine. Note the use of the 7106, an integrated circuit that has been widely used in digital instrumentation ever since.
| Clique na imagem para ampliar |
