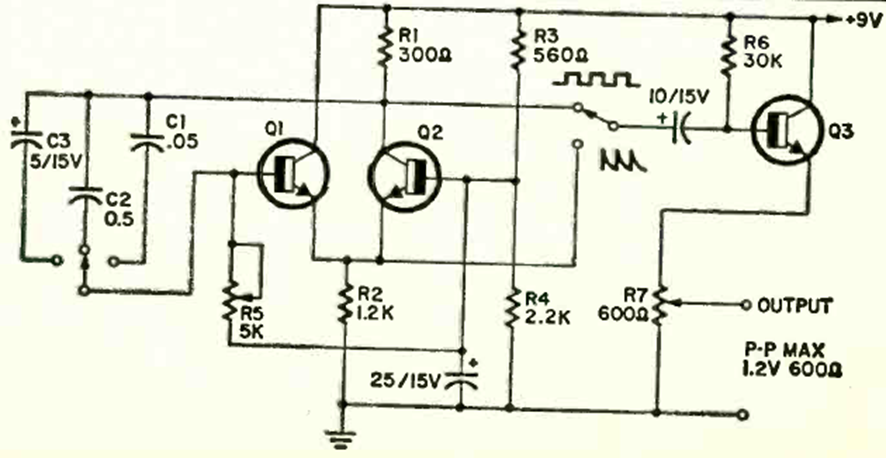

This circuit can be used in a toy organ. The frequencies are determined by the capacitors selected by a switch. Trimpots switched by a keyboard can be used. The circuit is from a Radio Electronics from May 1970.
| Clique na imagem para ampliar |
Square Triangular Oscillator (CB24025E)
- Details
- Written by: Newton C. Braga
