Transistor Amplifier (CB24221E)

Details
Written by: Newton C. Braga

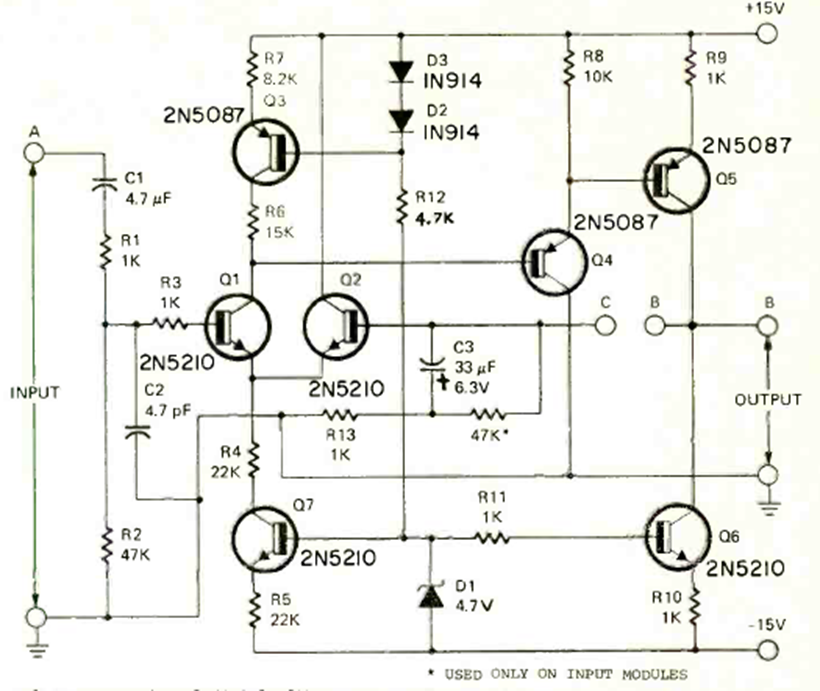

This good power amplifier, a few tens of watts, is part of an article in the December 1972 Radio Electronics magazine. The power supply must be symmetrical with at least 3 A.
