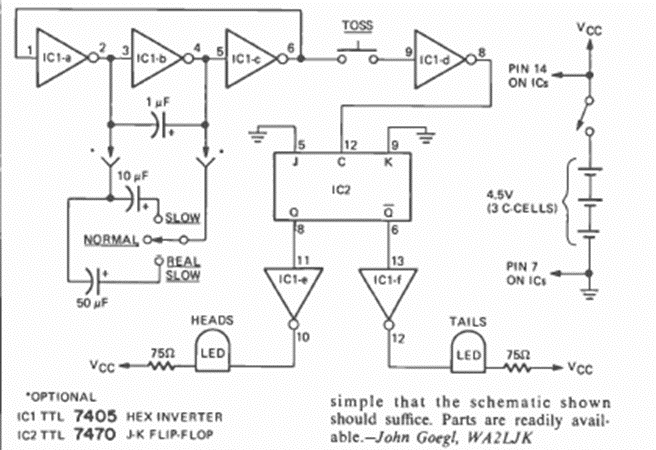

This TTL heads or tails circuit was found in the July 1973 Radio Electronics magazine. The LEDs are types of the time. Note the symbolic representation of this component.
| Clique na imagem para ampliar |
Heads or Tails (CB24257E)
- Details
- Written by: Newton C. Braga
