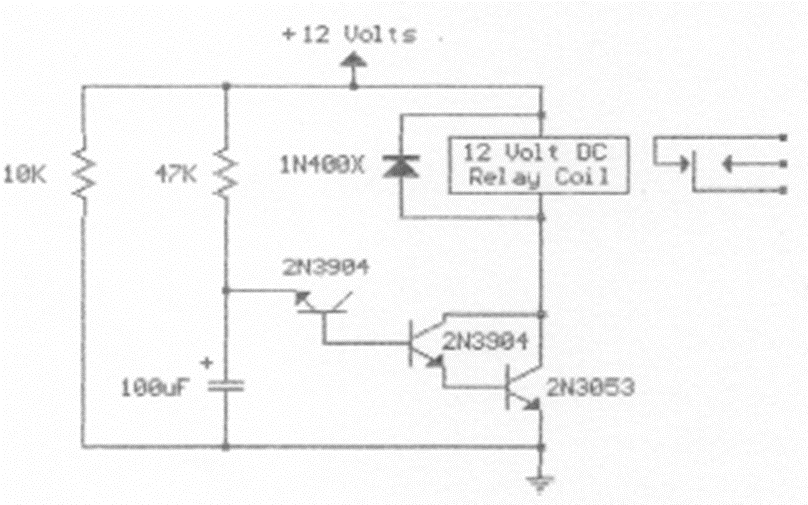

This circuit switches on an external load after a certain interval given by the capacitor. The circuit is from a documentation from the 80s. The load depends on the relay used.
| Clique na imagem para ampliar |
Delayed switch circuit (CB24443E)
- Details
- Written by: Newton C. Braga
