Headphone Amplifier (CB24080E)

Details
Written by: Newton C. Braga

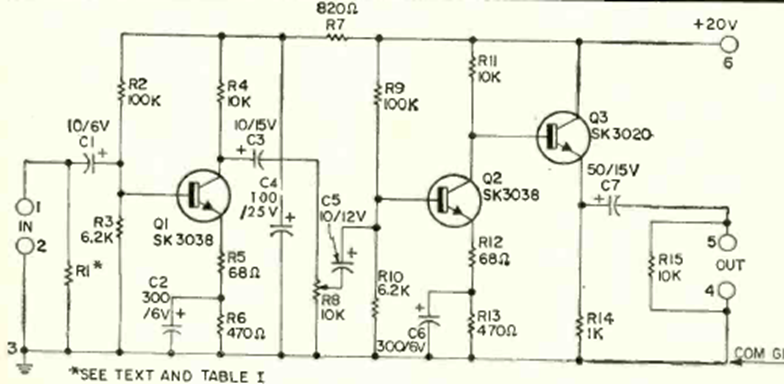

This circuit is from a Radio Electronics from October 1970. The circuit uses transistors from that era and has a low impedance output. The resistance R1 depends on the impedance of the input signal.
