Triggered Astable 4011 (CB24860E)

Details
Written by: Newton C. Braga

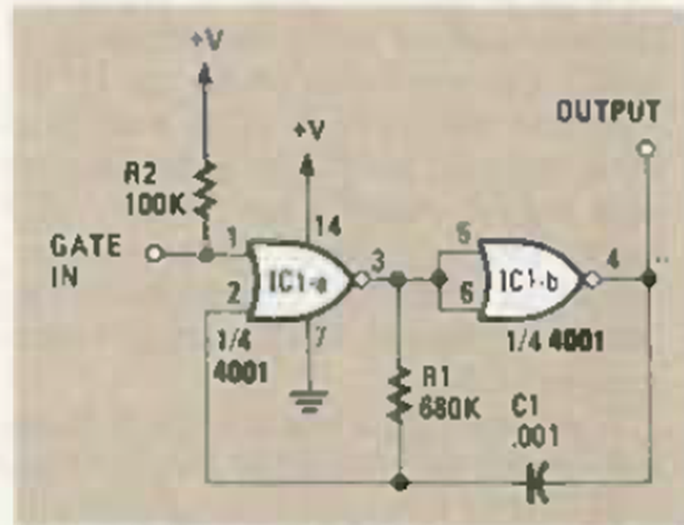

Active with the output at the high level, this oscillator was found in November 1984 Radio Electronics magazine. The supply can be between 3 and 12 V and the output signal is rectangular.






| Clique na imagem para ampliar |
