Time Base (CB24704E)

Details
Written by: Newton C. Braga

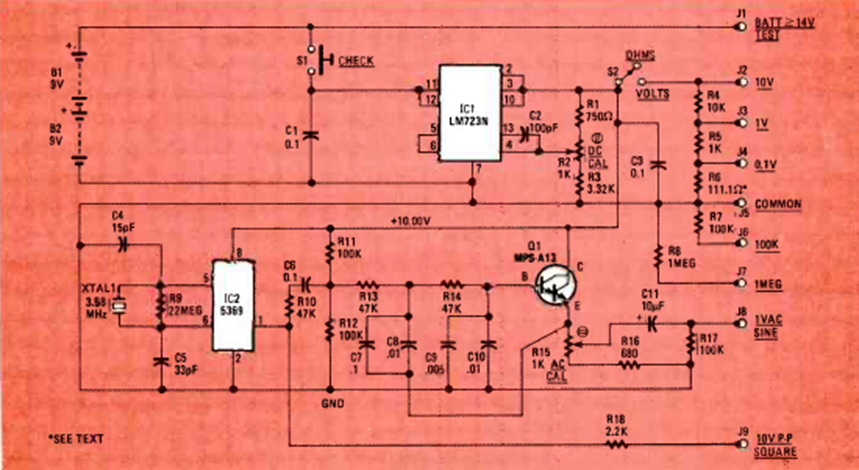

Indicated for calibrating digital instruments and circuits, this circuit was found in the June 1982 issue of Radio Electronics magazine. The circuit is based on components that are still available.
