Emitter Follower with CA3018 (CB24063E)

Details
Written by: Newton C. Braga

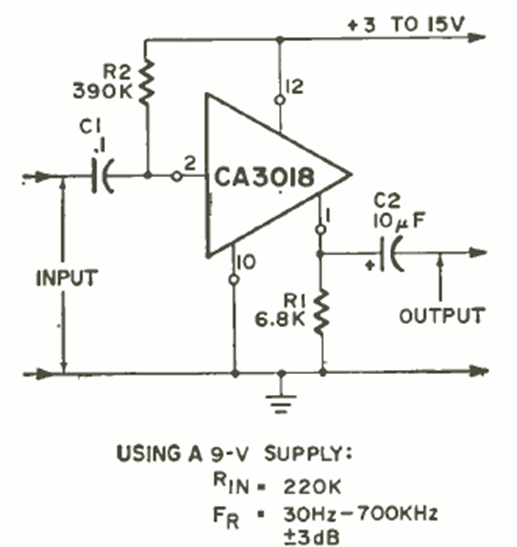

This amplifier with RCA's newly released CA3018 integrated circuit was found in the August 1970 issue of Radio Electronics magazine. The specifications are listed next to the diagram.
