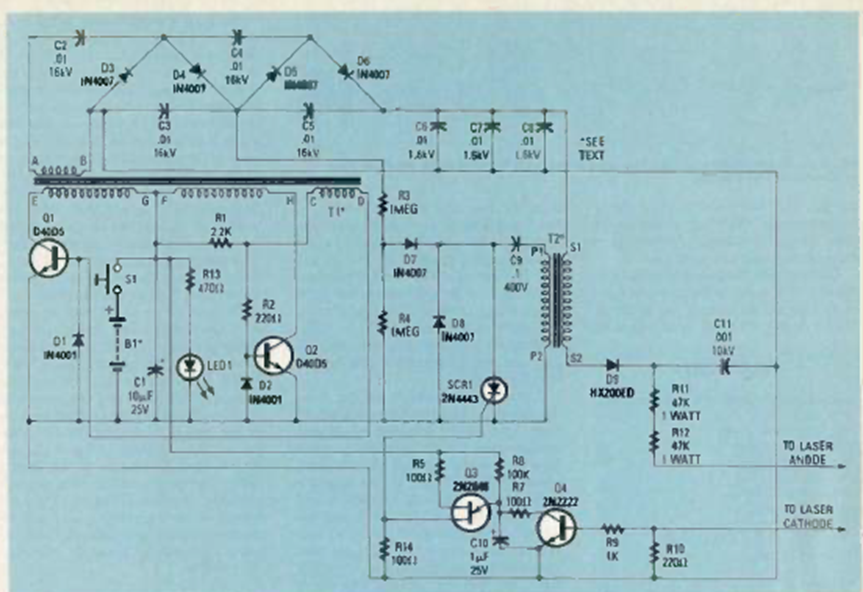

HeNe Laser Power Supply (CB24960E)

Details
Written by: Newton C. Braga



This few kilovolt gas laser power supply was found in the June 1986 issue of Radio Electronics magazine. No transformer data was provided.




| Clique na imagem para ampliar |
