Signal Generator (CB24219E)

Details
Written by: Newton C. Braga

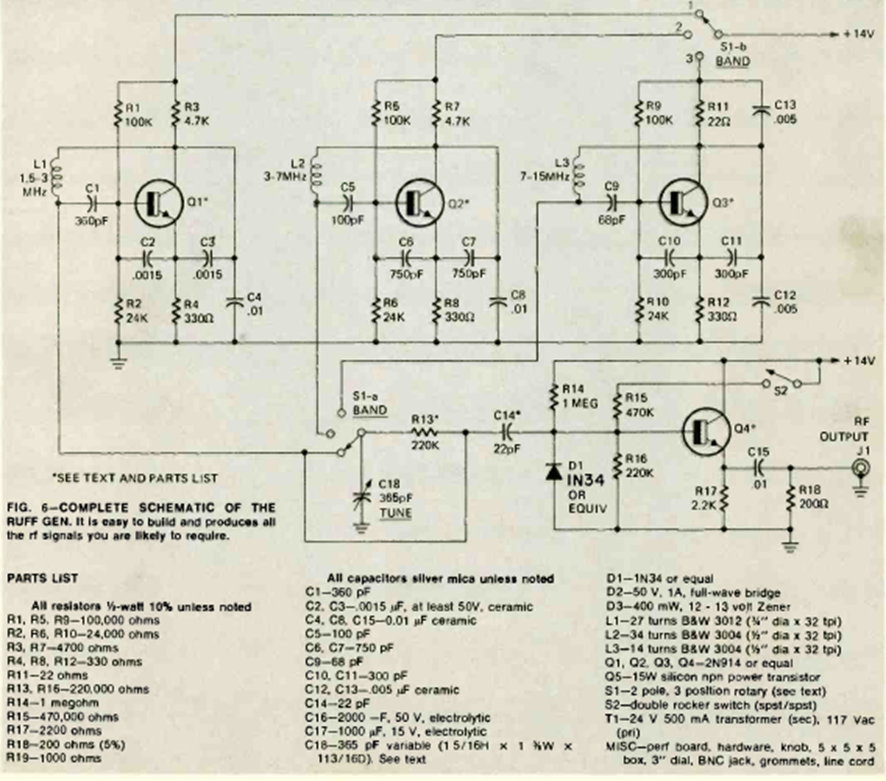

This diagram was found in the November 1972 issue of Radio Electronics magazine in an article describing benchtop equipment. The transistors are of the time and the frequencies are given by the coils.
