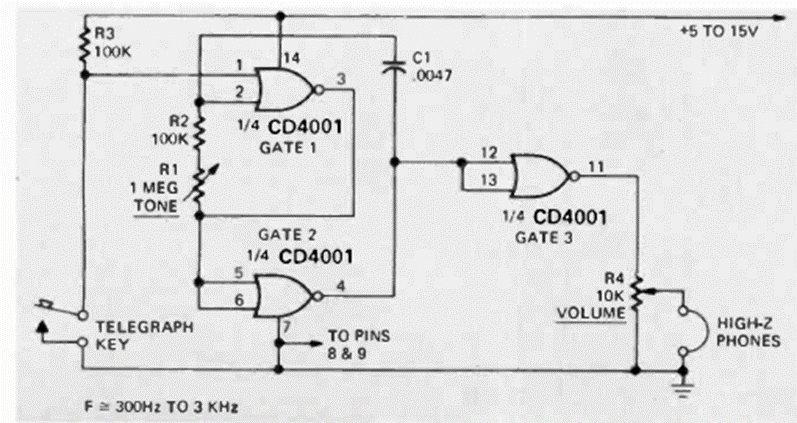

Indicated for telegraphy practice, this circuit was found in the Radio Electronics magazine of December 1974. The circuit is for high impedance headphones and can be powered by voltages from 5 to 15 V.
| Clique na imagem para ampliar |
Audio Oscillator 4001 (CB24350E)
- Details
- Written by: Newton C. Braga
