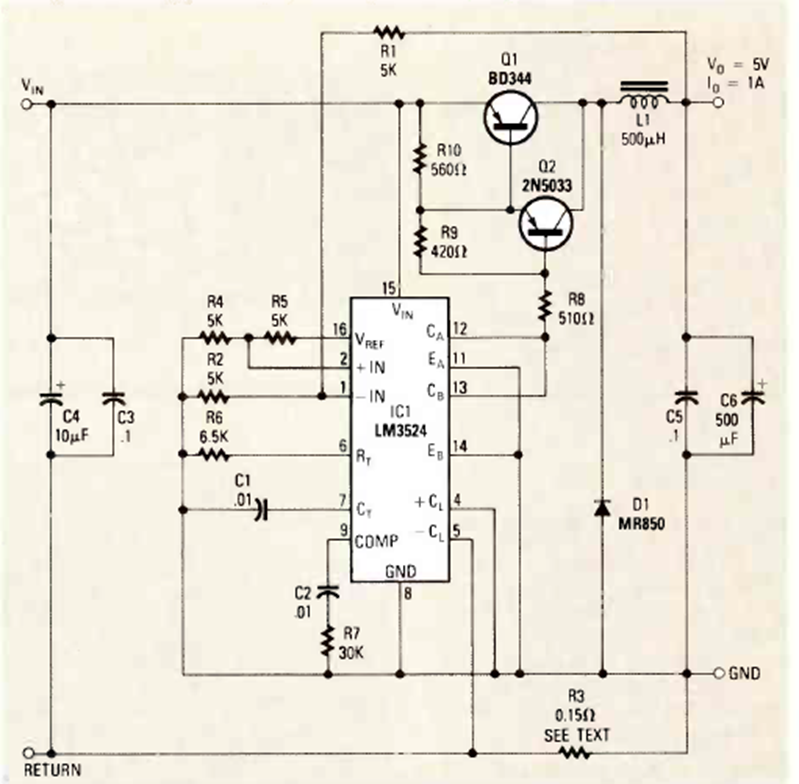

Switching regulator 5V x 1A (CB24923E)

Details
Written by: Newton C. Braga



This circuit was obtained from the December 1985 issue of Radio Electronics magazine. The circuit uses components from the time, such as the power transistor, which must be equipped with a heat sink.
