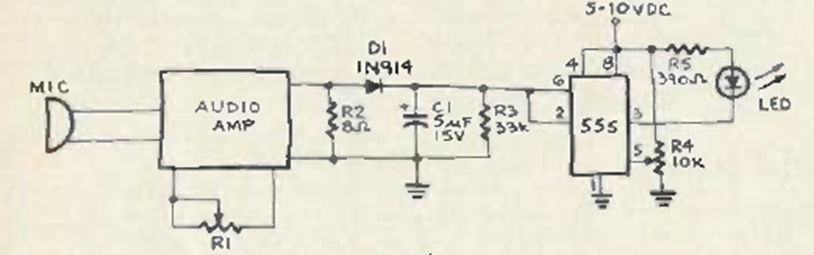

This circuit detects when an audio signal exceeds a certain level or even occurs due to an object falling, a door slamming or other. The circuit is from a Radio Electronics from January 1980.
| Clique na imagem para ampliar |
Sound Detector (CB24605E)
- Details
- Written by: Newton C. Braga
