106 Alarm with NC Series Sensors (CB24132E)

Details
Written by: Newton C. Braga

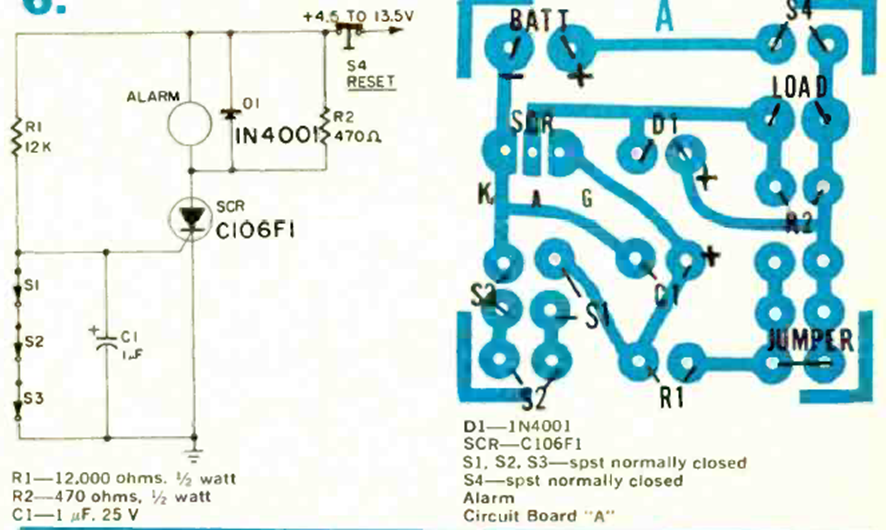

This alarm circuit with NC sensors in series was taken from an article in Radio Electronics magazine from May 1971. The SCR can be any of the 106 series.
