Heat Detector (CB24901E)

Details
Written by: Newton C. Braga

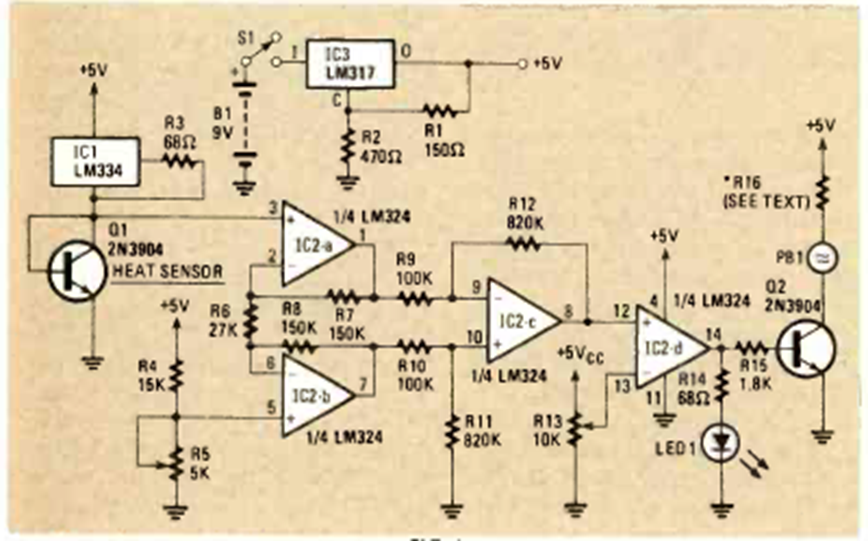

The purpose of this heat detector is to find hot spots on a board or other locations. The sensor is an integrated circuit from the period. The circuit is from Radio Electronics from May 1985.




| Clique na imagem para ampliar |
