Voltage reference with REF01 (CB24681E)

Details
Written by: Newton C. Braga

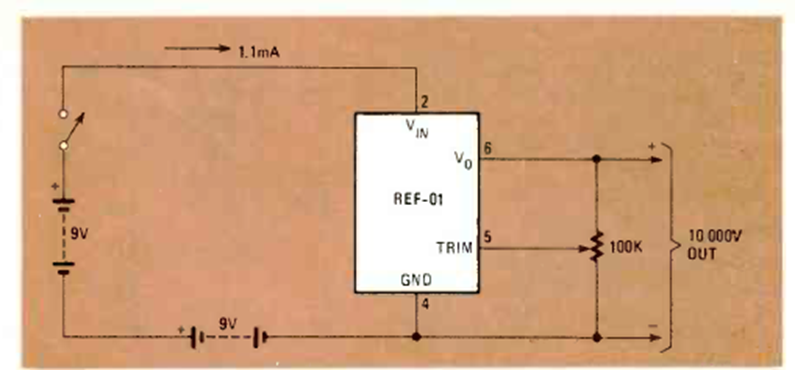

This is a circuit with a period component that consisted of a voltage reference. The circuit is from Radio Electronics from February 1981. In this circuit the output voltage can be adjusted exactly to 10 V.




| Clique na imagem para ampliar |
