5 V x 500 mA Power Supply (CB24155E)

Details
Written by: Newton C. Braga

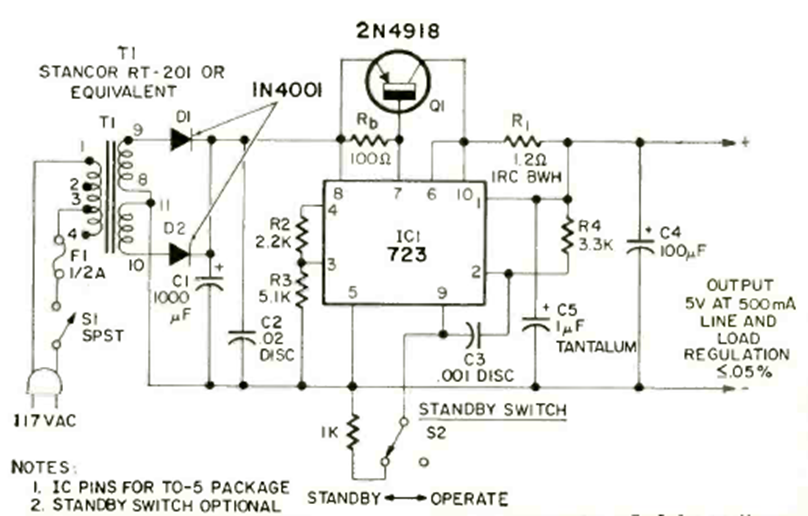

Using the 723 integrated circuit, this circuit was found in an article on power supplies in the August 1971 Radio Electronics magazine. The transistor may be the BD136 on a heatsink.
