Tunnel Diode Test Circuit (CB24311E)

Details
Written by: Newton C. Braga

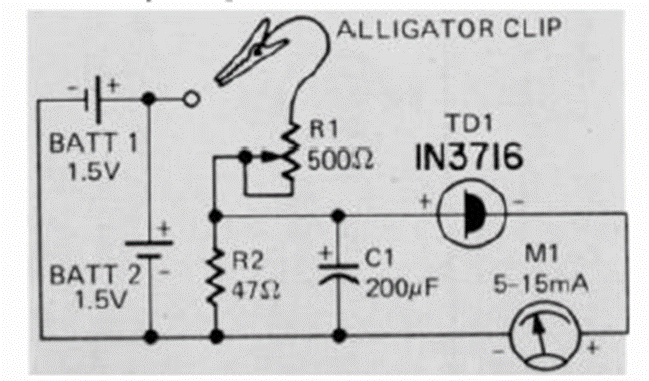

The purpose of this circuit, which we found in an August 1973 Radio Electronics issue, is to determine the characteristics of a tunnel diode.
