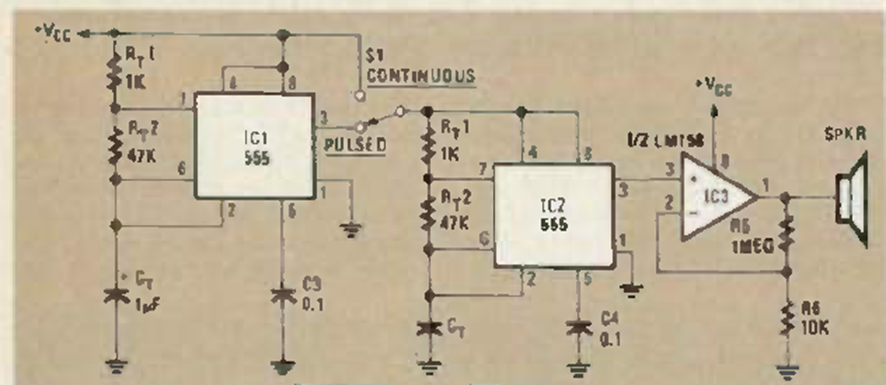

This circuit operates from 25 to 65 kHz depending on the transducer used and the settings. We found it in the Radio Electronics magazine of July 1985. The 9V to 12V power supply is not given.
| Clique na imagem para ampliar |
Repellent with 555 IC (CB24933E)
- Details
- Written by: Newton C. Braga
