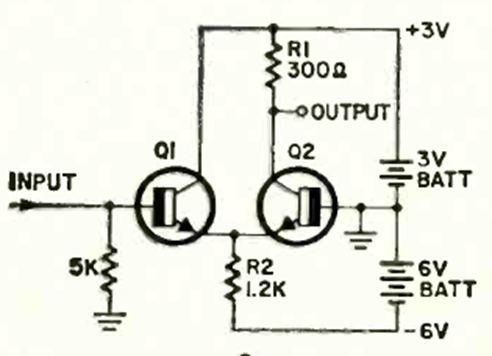

This circuit was found in the May 1970 issue of Radio Electronics magazine. The circuit uses general-purpose transistors and a symmetrical 6 + 6 V source. The circuit can be made with PNP transistors by inverting the power supply.
Symmetrical Source Emitter Coupled Amplifier (CB24022E)
- Details
- Written by: Newton C. Braga
