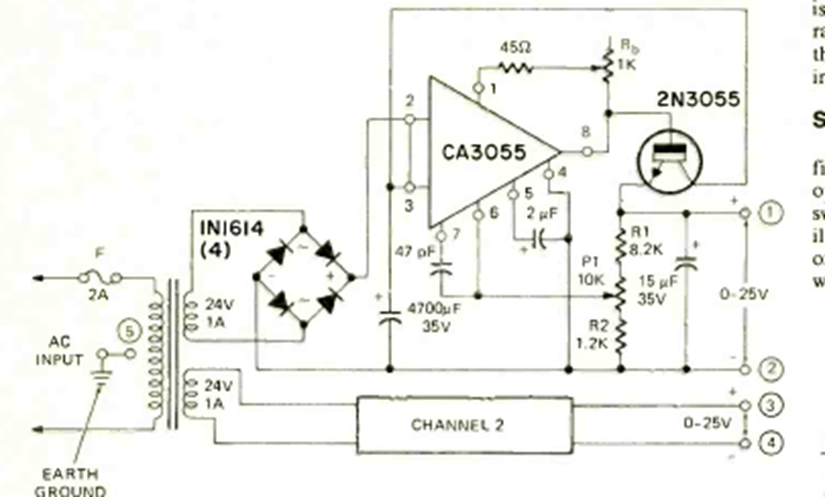

This circuit was found in a Radio Electronics magazine from November 1972. The circuit is based on an integrated circuit of the time and the current is 1 A and is adjusted with a potentiometer.
| Clique na imagem para ampliar |
Dual Power Supply (CB24217E)
- Details
- Written by: Newton C. Braga
