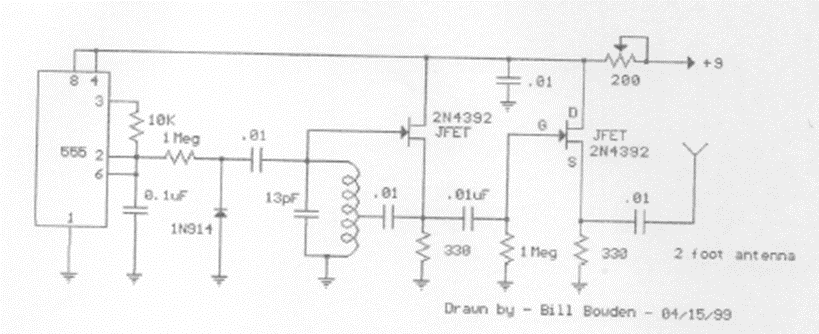

This signaler, depending on the transistor, can have a range of a few hundred meters. The 600 Hz audio tone is given by the 666. The power supply is made with a 9 V battery. The coil consists of 2 + 2 turns of 2 or 28 wire in the shape of 1 cm.
