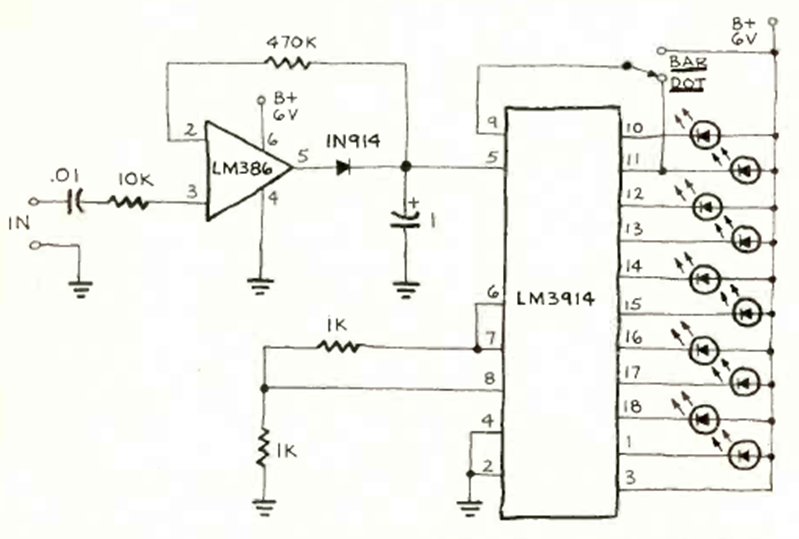

In the figure we have a simple way to have a peak bargraph indicator. The amplifier is of the audio type, but operational ones can be used. The circuit is from Radio Electronics from March 1980.
| Clique na imagem para ampliar |
LM3914 Peak Meter (CB24635E)
- Details
- Written by: Newton C. Braga
