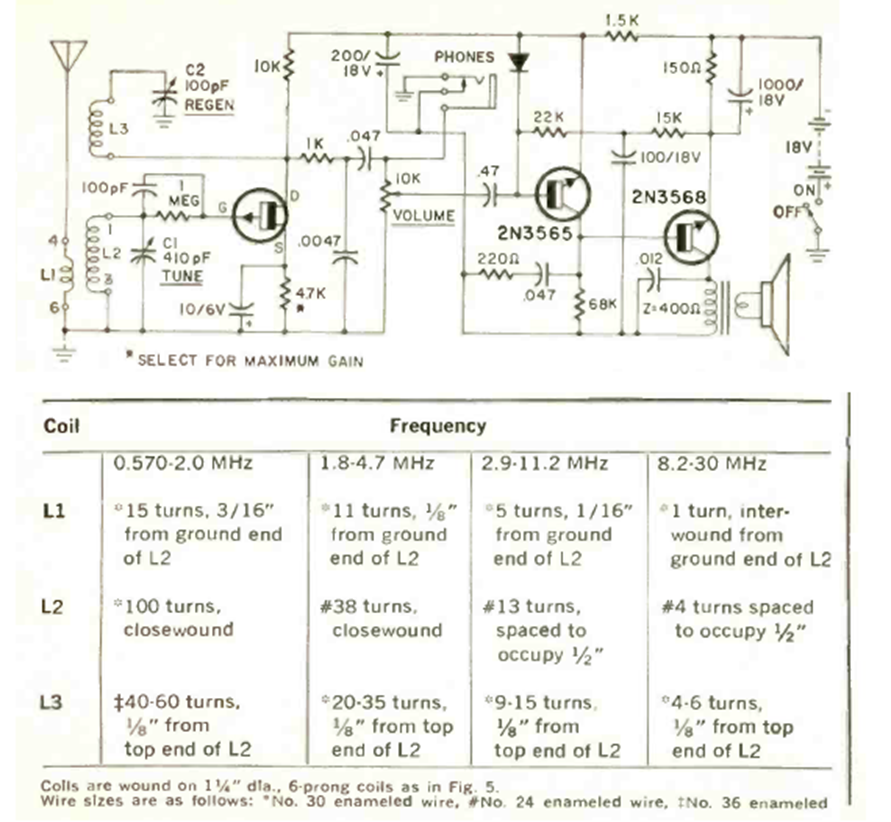

We found this 3-transistor receiver in the July 1970 issue of Radio Electronics. The transistors may be current equivalents. Note the polarity of the power supply since the NPN transistors are designed inverted. The coils are tuned to the tuned bands.
