Signal Generator (CB24216E)

Details
Written by: Newton C. Braga

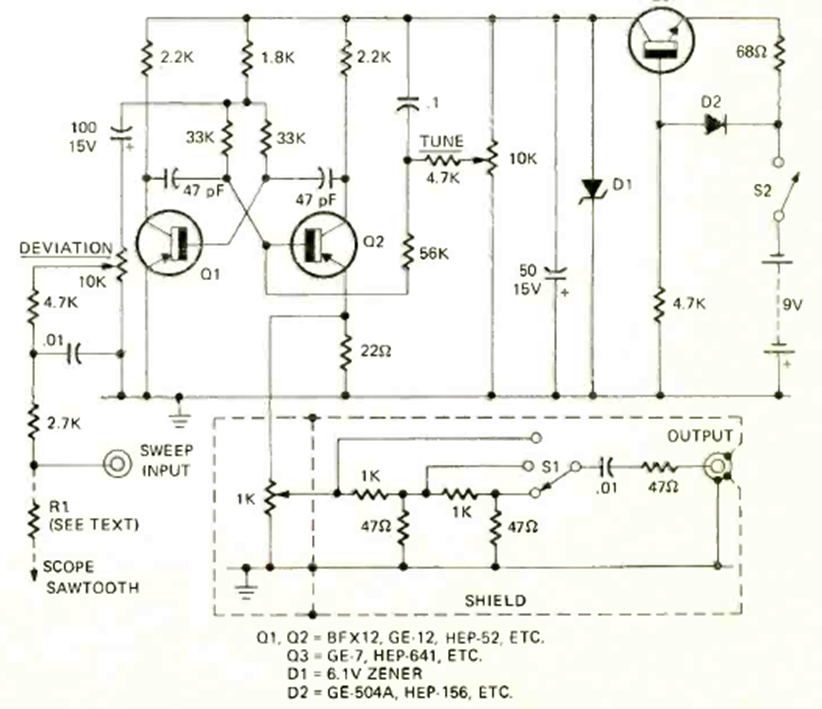

This circuit with transistors of the time was found in the November 1972 Radio Electronics magazine. The circuit also generates a sawtooth signal for use on an oscilloscope.




| Clique na imagem para ampliar |
