Gain 20 operational stage (CB24270E)
- Details
- Written by: Newton C. Braga

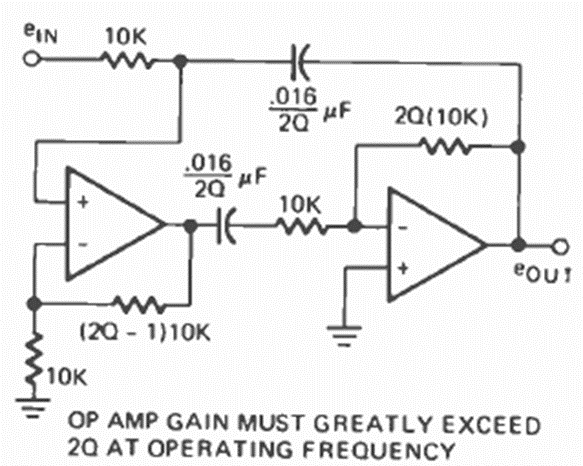

This circuit with two operational amplifiers was found in the November 1973 Radio Electronics magazine. The gain exceeds 20 and the power supply must be symmetrical.
