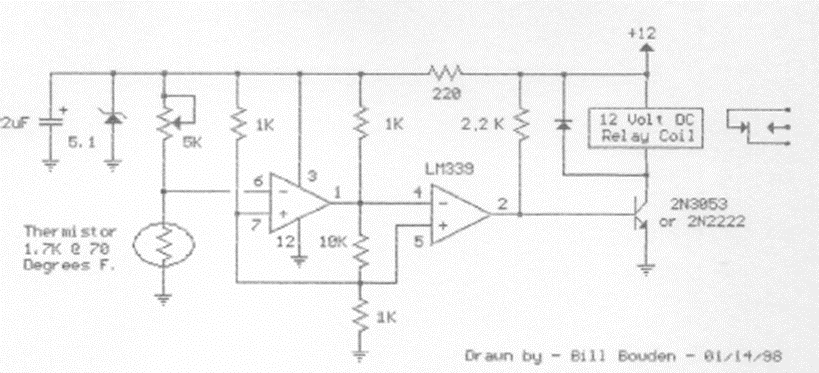

We found this circuit in documentation from the 90s. The circuit activates the relay at the temperature set by the potentiometer. By changing the sensor, its characteristics can be compensated by changing this potentiometer.
| Clique na imagem para ampliar |
