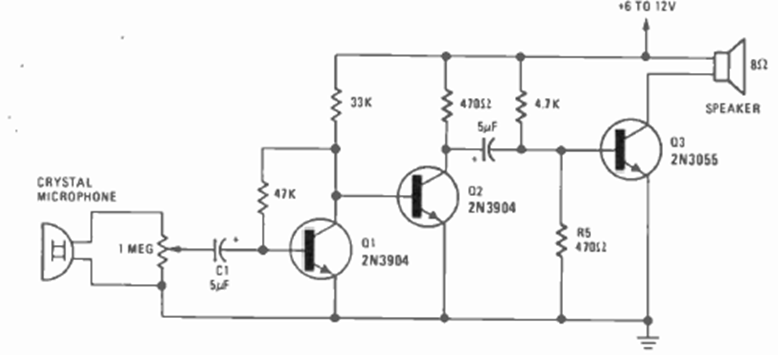

This simple amplifier uses a microphone attached to the telephone. The 3-transistor circuit was found in the May 1977 issue of Radio Electronics magazine. It can be powered by a power supply or battery.
| Clique na imagem para ampliar |
Telephone Amplifier (CB24504E)
- Details
- Written by: Newton C. Braga
