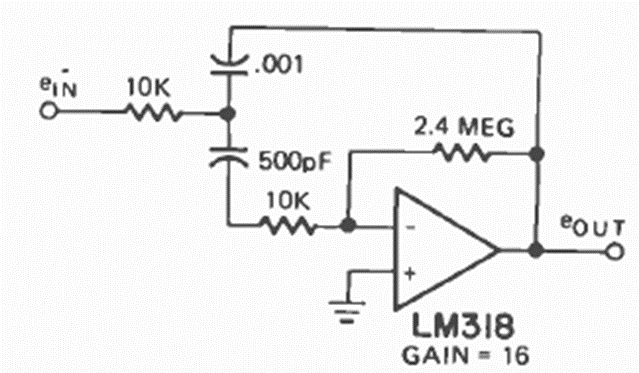

Gain 16 Amplifier (CB24269E)

Details
Written by: Newton C. Braga



This amplifier was found in the November 1973 issue of Radio Electronics magazine. The power supply should be symmetrical, and the input resistance should be 10 k ohms.
