Mixer (CB24020E)

Details
Written by: Newton C. Braga

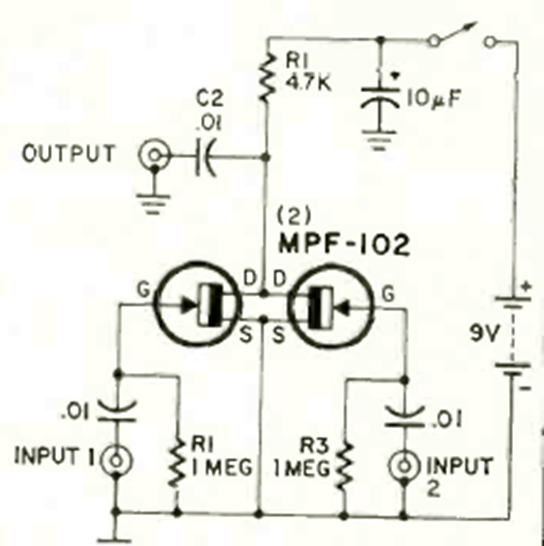

This small general-purpose mixer uses only two transistors. We found it in a Radio Electronics issue from April 1970. It is powered by a 9 V battery.
