Universal Motor Control (CB24059E)

Details
Written by: Newton C. Braga

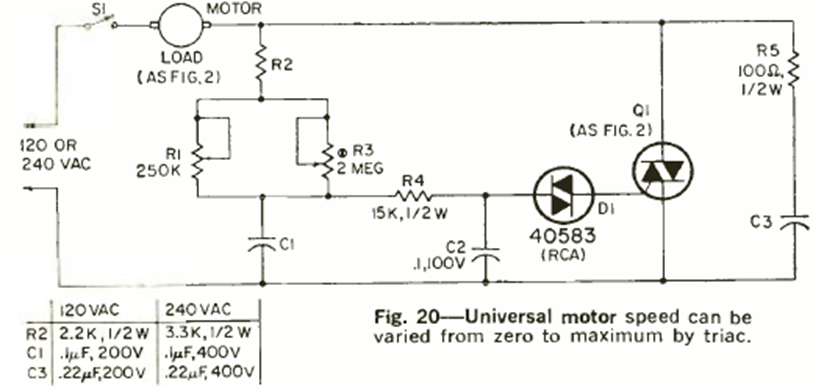

This triac circuit was taken from an article in the July 1970 Radio Electronics magazine. Note the snubber formed by R5 and C3 for controlling inductive loads.




| Clique na imagem para ampliar |
