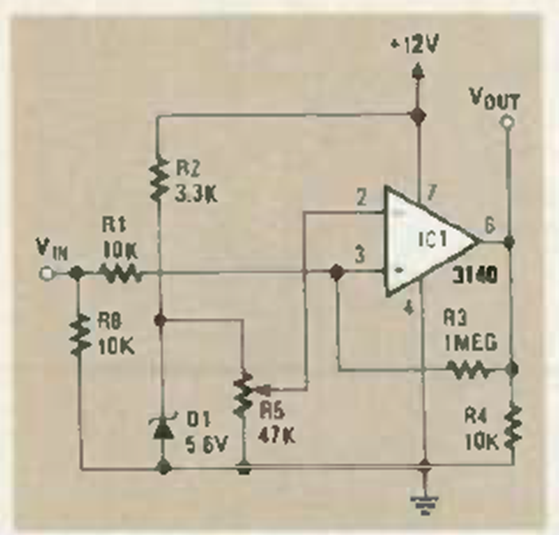

Overvoltage Switch CA3140 (CB24965E)

This comparator application circuit was obtained from the June 1986 Radio Electronics magazine. The reference voltage is adjusted from a zener diode.
