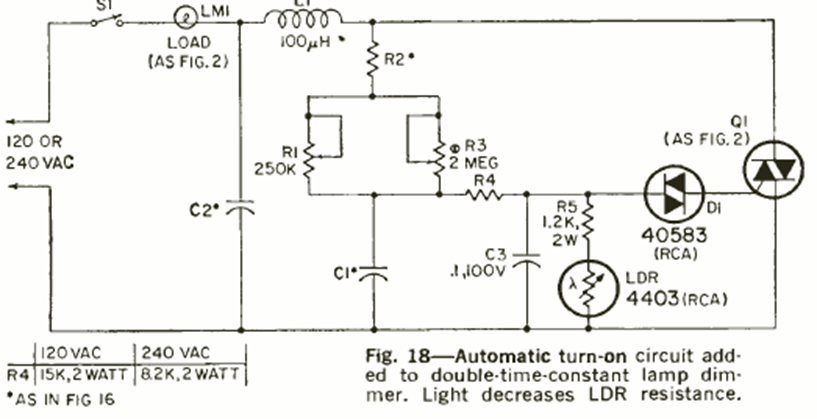

This circuit was obtained from the July 1970 issue of Radio Electronics magazine. The circuit turns on an incandescent lamp when the light on the sensor is dimmed or cut off. The triac is matched to the lamp.
| Clique na imagem para ampliar |
Twilight Switch with Triac (CB24058E)
- Details
- Written by: Newton C. Braga
