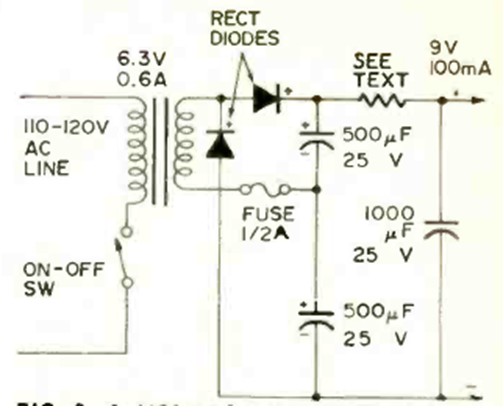

With this source, it is possible to obtain a higher output voltage than that obtained by the transformer secondary. The source is non-regulated, and the value of the resistor depends on the desired current in the load and the voltage as well.
Voltage doubler (CB24098E)
- Details
- Written by: Newton C. Braga
