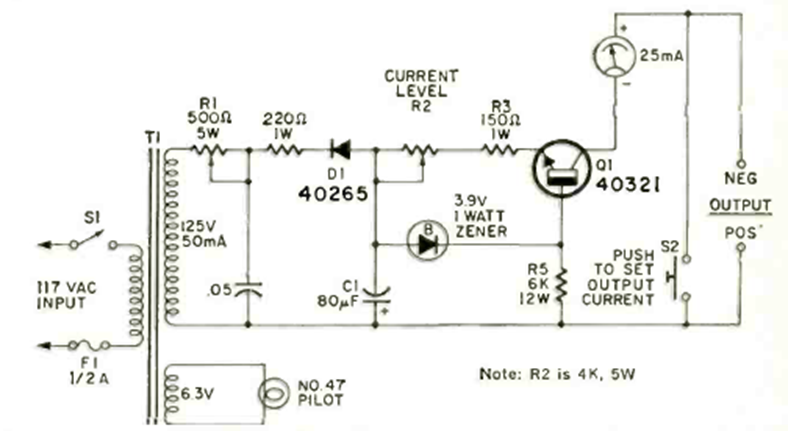

This power supply with a slightly different configuration was found in the August 1970 Radio Electronics magazine. The current is low, and the transistor is medium power or general purpose according to the output current.
