Delayed entry and exit alarm (CB24380E)

Details
Written by: Newton C. Braga

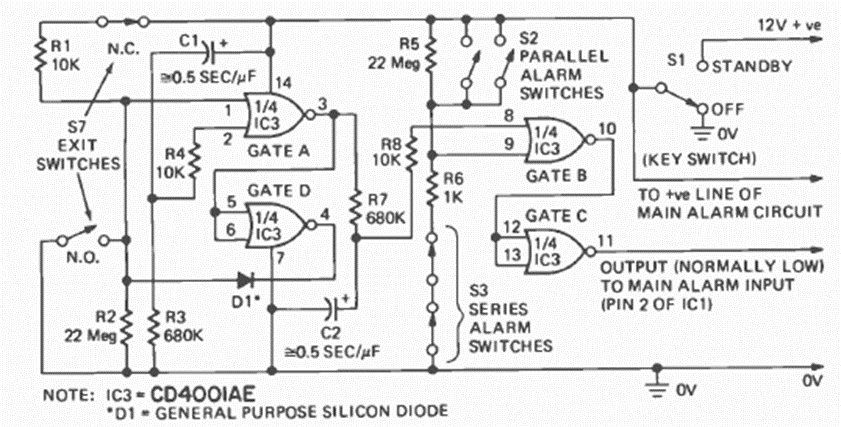

This alarm is either activated or triggered after a certain amount of time, giving the owner time to exit or enter and disarm it. The circuit is from a Radio Electronics from April 1975.




| Clique na imagem para ampliar |
