Bargraph for the car (CB24906E)

Details
Written by: Newton C. Braga

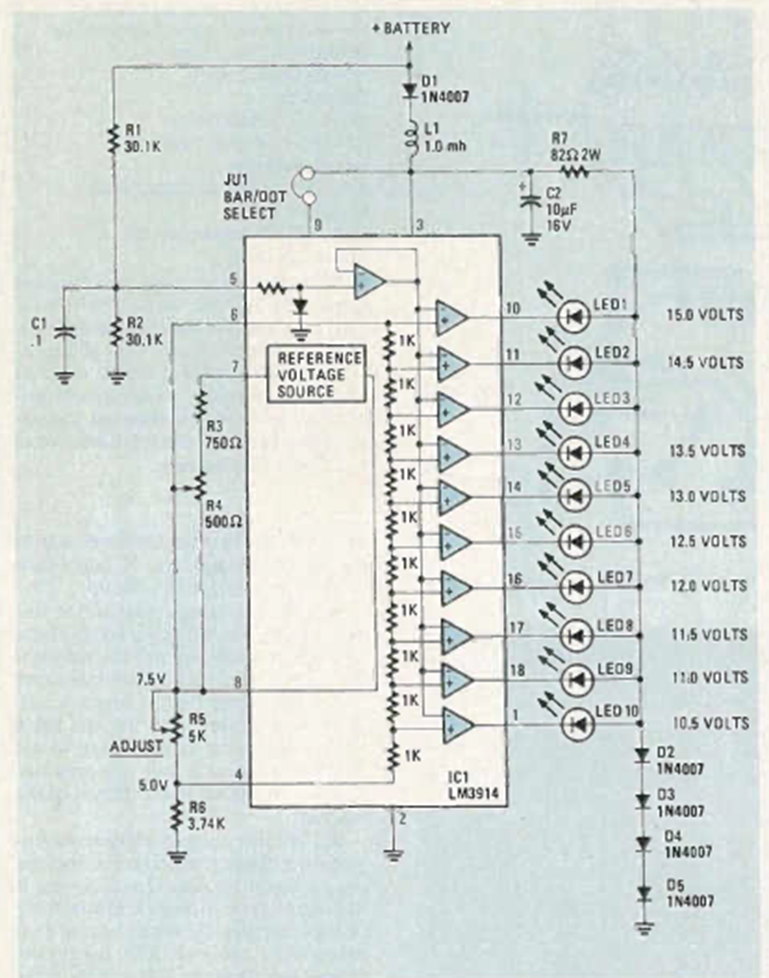

We found this circuit with the LM3914 IC in a Radio Electronics magazine from June 1985. The circuit is intended for monitoring the battery voltage through an LED bar.
