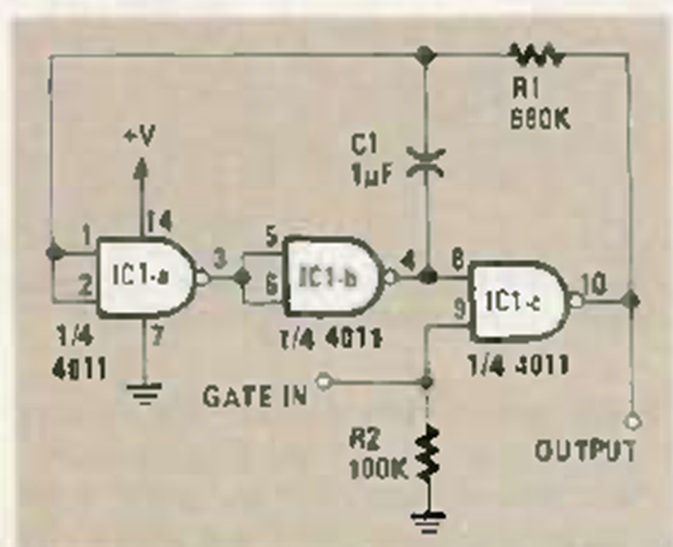

Ring Oscillator 4011 (CB24865E)

Another triggered oscillator that we found in the November 1984 Radio Electronics magazine. The frequency is also given by R1 and C1.
