1 kHz High Pass Filter (CB24267E)

Details
Written by: Newton C. Braga

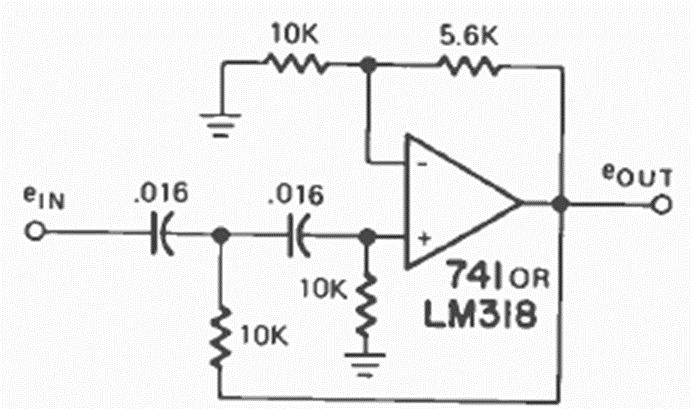

Using the 741 this basic circuit was found in the November 1973 Radio Electronics magazine. The power supply must be symmetrical. The components can be recalculated for other frequencies.
