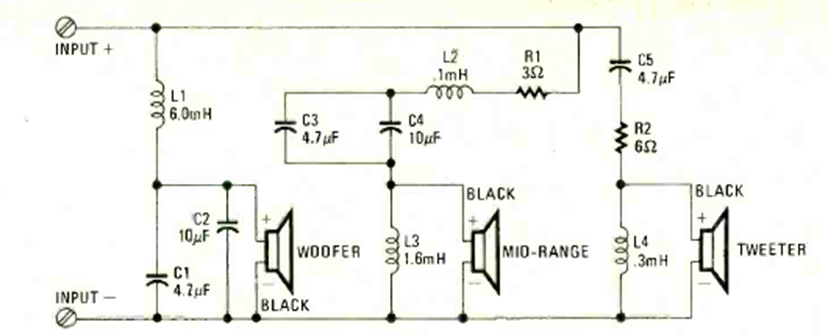

This frequency divider for 3-speaker boxes was found in the December 1978 issue of Radio Electronics magazine. The inductance values should be based on components with current capacities that are compatible with the amplifier power.
