Pulse Modulator XR220 (CB24212E)
- Details
- Written by: Newton C. Braga

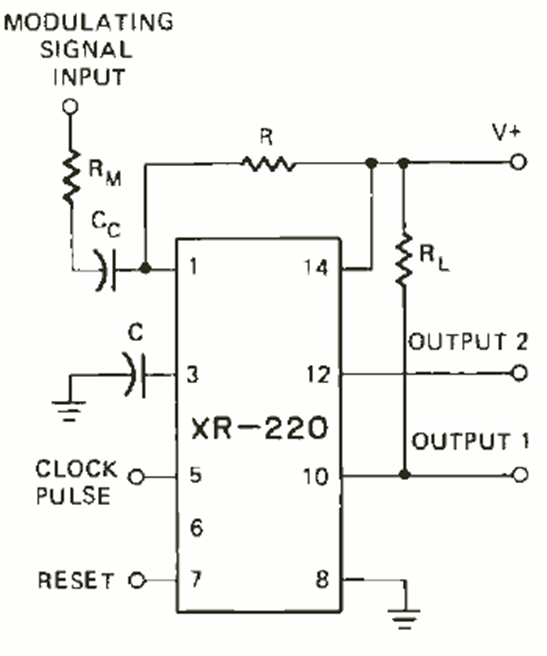

Found in the October 1972 issue of Radio Electronics magazine, this circuit generates modulated pulses. Capacitors C and R determine the frequency. The outputs are complementary.
